Polcam SMARTEYE
PolCam SMARTEYE
SmartEye Main Features
• Protection class IP66 (IP67 on demand)
• Stationary and mobile use, installed on the vehicle
• Tracking Radar 3D or/and optional Scanning Laser 3D
• Tracking speed and position of up to 32 vehicles simultaneously
• Remote access
• Various cameras: HD, 5MPixel – 12,4 MPixel, dual camera
• Accuracy ± 3km/h to 100km/h ± 3% above 100km/h
• Compact size and weight
Features
- Protection class IP66 (IP67 on demand)
- Mass Storage SSD 128GB-256GB
- Communication 1Gb Ethernet, TCP/IP, 3xUSB, 4xI/O
- Resolution 5 MPixel (2448 x 2050)
- Accuracy +/- 3km/h to 100km/h +/- 3% above 100km/h
- Tracking speed of up to 32 vehicles (incoming, outgoing, both directions)
- Pre-Recording Yes
- GPS Build In

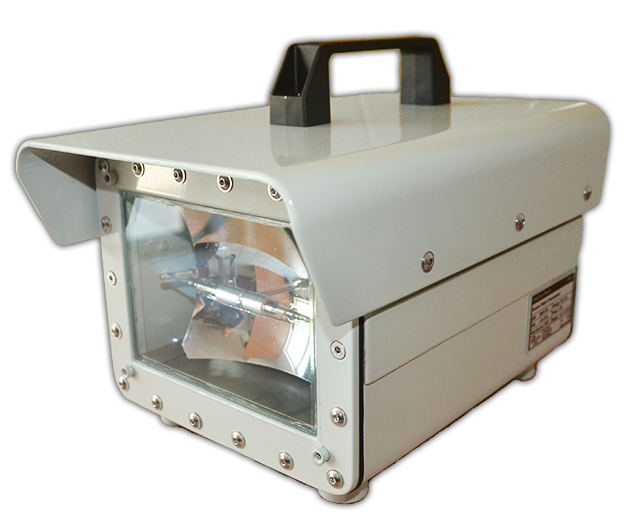

FLASH XENON FX-1 MODULE
The immediate benefits for the unit are:
- Pulse duration: below 250 μs, 60 Joules energy
- High photo-electrical efficiency
- Reduced power needs
- Fast sequences capability
- Wide flexibility, e.g. asymmetrical bursts, sequencing
- Better reliability
- IP67 enclosure
- Exchangable filtres
Optical features:
- (V) version: visible light, no colour correction. Colour temperature
around 6300K. - (IR) version: Infra-Red emission, 760nm and above.
- Hotspot field angles: horizontal 20°, vertical 12°. Far away from the specified angles, the beam can be used with good photographic results.
- Guide Number for pictures of cars, (V) version: 60 at ISO100, i.e. f-stop
4 at ISO200 and 19 meters, or f-stop 2.8 at ISO400 and 42 meters! - Guide Number (IR) version: although Guide Numbers concern visible light only, IR image sensors usually behave with this filtered 60 Joules flash as if they featured ISO400 without IR filtering. This means, for reference purposes only, f-stop 5.6 at 21 meters, subject to the exact.
Dynamic features:

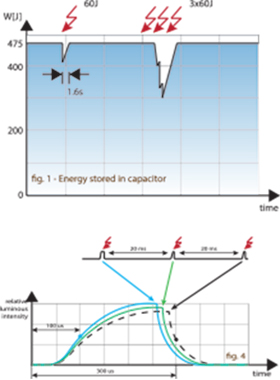

- Minimum interval between two shots: 0.02 seconds, i.e. 3 shots within
0.04 seconds. Valid fora burst of 3 shots followed by a 6-second recovery period. fig. 3. - Flash duration: shorter than 300μs. fig. 4.
- Occasional working rate: one 60 Joule shot every 2.5 seconds for 1 minute. Acceptable permanent rate: one 60 Joule shot every 3 seconds.
Particulary efficient for traffic control Xenon Flash Illuminator takles advantage of the “flash switch-off technology”. This involves small size buffer capacitors stroing energy for multiple shots and using only a part of it for each light impulse.
Basic Functions Opeartions

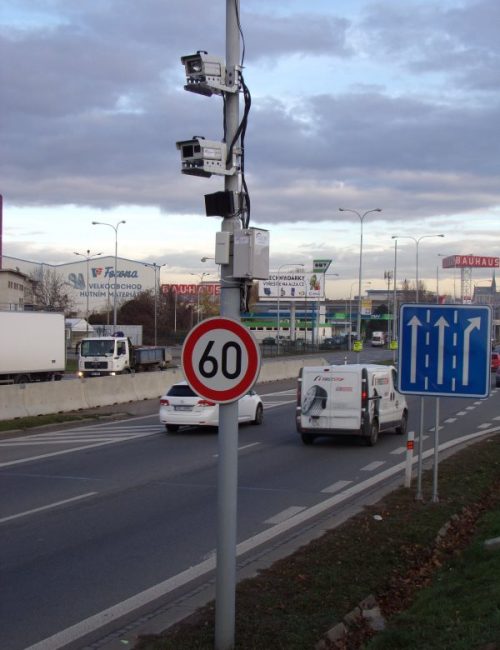

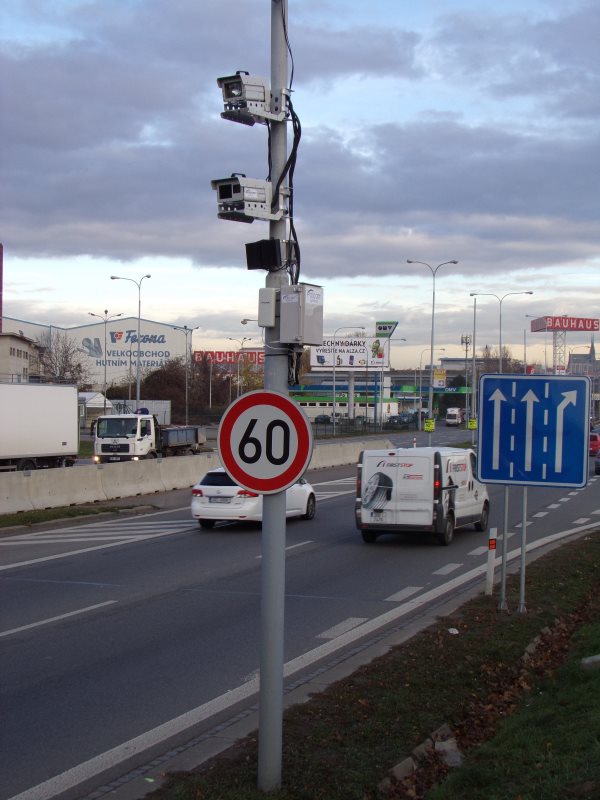

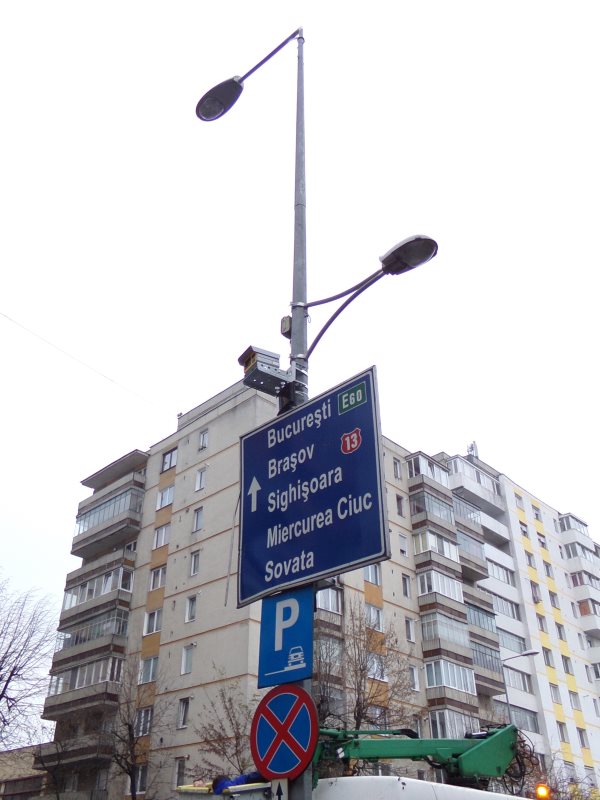

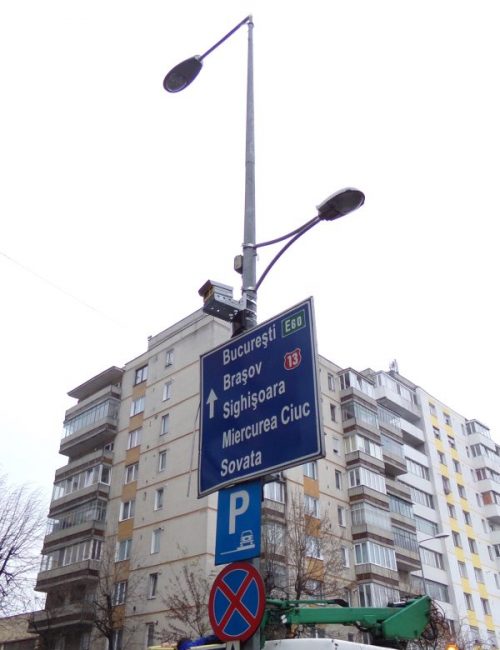

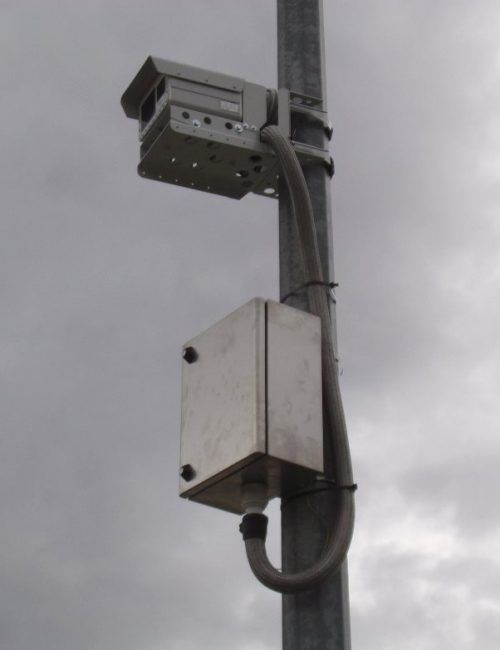

OUR INSTALLATIONS

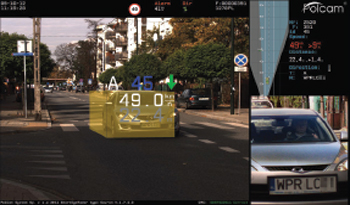

SAMPLE EVIDENCE FILES
Poland
Poland
Turkey
DESCRIPTION
Including 3D Tracking Radar and various models of cameras from 1,3 to 5,0 MPixel and optionally more up to 18MPixel DSLR camera depending on a project. Components are closed inside waterproof class housing with IP67 type connectors and indicators. Device is designed to capture speed of up to 32 vehicles both directions on up to 4 Lane Street.
Device fulfills and excides all current market requirement in European Union including Type Approvals requirements in various European Metrology institutes.Metrology institutes.
- Compact and lightweight architecture enabling the useontripod, in any patrol vehicle, or on top of a pneumatic pole.

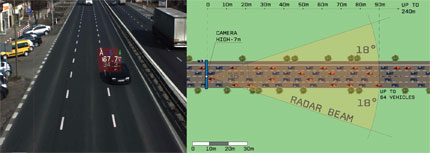

- Full control of up to 32 vehicles on a four-lane highway includingindividualspeed tagging, distance, and GPS coordinates recorded with other essential data of each captured car.
- Total control of “tailgating”, side-by-side cruising up to three lanes,vehicle-mass discrimination, tracking of lane change by violators.
- Automatic control of different speed limits for different lanes as well as different types of vehicles.
- Evidence providing as full-HD video and hi-resolutionstillphotographsof license plates and facial characteristics through flash on a 24/7basis.

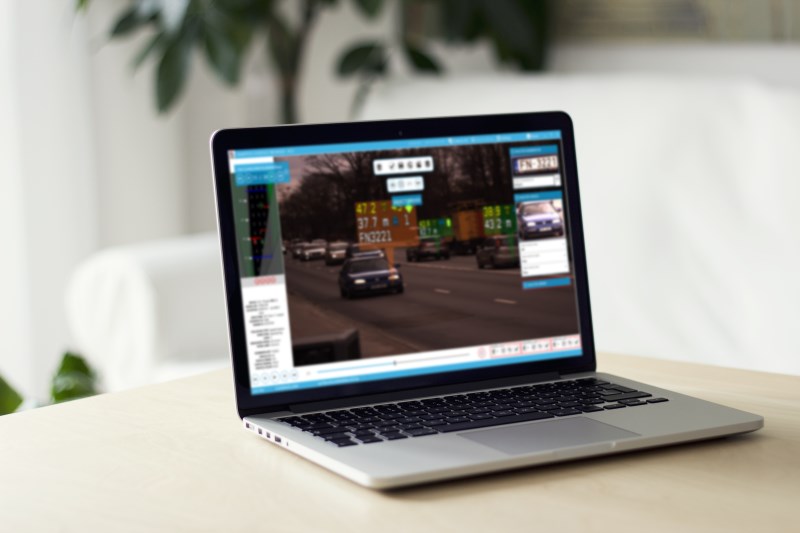

POLCAM BACK-OFFICE EVIDENCE BROWSER
Quick and easy installation and setup process and modern system interface makes the device userfriendly. System architecture allows to operate on a tripod with touch screen as well as on fixedinstallation.
PolCam Back Office Evidence Browser is Windows application delivered with the device.Softwareallowsin particular:
- browse encrypted evidence files made by Smart Eye Radar,
- mark /crop/zoominvehicleinviolation,photoofthe driver, vehicle number plate,
- adjust brightness, contrast and special histogram prepare SmartPhoto/Video,
- restore andarchiveevidencesonDVD or anyotherstorage media.
RECORDS OFFENCES WITHOUT STOPPING DRIVERS
SPECYFICATION
| Set | |
| Parameter | |
| Architecture | Modular |
| Protection Class | IP 66 (IP 67 on demand) |
| Operating temperature | -30°C to +70°C |
| Power Consumption | <3,2A 12V DC |
| Power Supply | 9 – 15V DC optional 230VAC |
| Power Buffer | Optional up to 60 seconds |
| Dimension | 238x285x202 |
| Weight | less than 10kg |
| Processing Unit | |
| Parameter | |
| Operation System | Embedded OS (Linux) |
| Processor | Industrial 1,6GHz 2 x 200 MHz ARM |
| Memory | 2GB |
| Storage Medium | 128 – 256 GB Internal SSD |
| Communication | 3xUSB, CAN, I/O, GbE, Optional WiFi, GSM |
| Control | LCD Monitor (VGA) Touchscreen, Eth (HTTP, RDC) |
| Internal Camera | |
| Parameter | ST-1 / ST-1IR/A |
| Resolution | 5 MPixel (2448 x 2050) |
| FPS | up to 15fps |
| Sensor | 2/3” CCD Color / B&W |
| IR-Cut Filter | YES / NO |
| Lens | Megapixel 25mm |
| Internal Radar | |
| Parameter | ST-1 / ST-1IR |
| Maximum Range (Truck) | Typ. 240m |
| Maximum Range (Car) | Typ. 160m |
| Max. Range (Pedestrian) | Typ. 60m |
| Azimuth | 3dB Limits +/-6 degree |
| Elevation | 3dB Limits +/-4 degree |
| Max. Az. Field of View | +/-18 degree |
| Measurement Speed | – 299 km/h to -2km/h +2 km/h to 299 km/h |
| Accuracy in operating conditions | Less than +/- 3km/h to 100 km/h +/- 3% above 100km/h |
| Accuracy in laboratory conditions | Less than +/- 1km/h to 100 km/h +/- 1% above 100km/h |
| Accuracy of distance measurement | Less than 2.5% (10m .. max range) |
| Tracking objects | up to 32 objects simultaneously |
| Operating frequency | 24 GHz, K Band |
| Software | |
| Parameter | |
| Remote Administration | Yes |
| Evidence Recording | Automatic, Manual Trigger |
| Pre-Recording | Yes |
| Post-Recording | Yes |
| Encryption | Yes |
| Type of Evidence | MJPEG with Metadata <6 fps MRAW with Metadata <15 fps Smart Evidence Photo |
| Number of evidences per 1GB | 250 – 500 at MJPEG 15 – 70 at MRAW 1000 of Smart Evidence Photos |
| Software Features | |
| Parameter | |
| Static | with Lane discrimination and at 3 different distance. Allow to diagnose how drivers slow down next to radar. |
| Remote admin | Available thru RemoteDesktop as well as HTTPS by any Browser. |
| Auto Evidence Expor | Automatically evidence export to USB and/or remote server. |
| Other | |
| Parameter | |
| Accessories | Mounting brackets, Heavy duty tripod, Lens Filters, 230 VAC adapters, 12V Battery (more than 8h of work) |
| Modules | IR Illuminator, Flash Strobe, WiFi Module, GPS Build In, GSM, Additional Camera, Shock Sensor, Angle Calculator |
| Software Upgrades | Red Light, ANPR Module, Special Video analytics, Statistics, SDK API for integrators |
